The Ultimate Guide to Medical Exam Lights: Illuminating the Path to Accurate Diagnosis

In the meticulously equipped modern clinic or hospital, attention often falls on the high-tech imaging machines and digital diagnostic tools. Yet, there is one fundamental piece of equipment whose importance is both profound and frequently underestimated: the Una lámpara de examen médico. Far more than a simple source of brightness, a specialized medical light is a primary diagnostic instrument. It is the critical tool that allows a clinician’s most powerful asset—their trained vision—to function at its peak.

Proper medical illumination is not a matter of convenience; it is a cornerstone of patient safety, diagnostic accuracy, and effective treatment. The subtle difference between a benign mole and a suspicious lesion, the early hint of jaundice in sclera, or the precise margins of a wound—all are revealed under the right light. This comprehensive guide will illuminate the science, technology, and selection criteria behind medical exam lights, empowering healthcare professionals, clinic managers, and procurement specialists to make informed decisions that enhance clinical outcomes.

1. The Critical Role of Illumination in Medical Diagnosis & Treatment

1.1. Why Specialized Lighting is Non-Negotiable in Healthcare

Imagine trying to discern the faint blue hue of cyanosis or the subtle yellow of early jaundice under the warm, shadowy glow of a standard office lamp. It would be nearly impossible. Medical exam lights are engineered to solve this problem.

  • Beyond General Illumination: Unlike ambient room lighting designed for comfort, medical lights are task-oriented. They deliver intense, focused light to a specific anatomical field without causing eye strain for the practitioner or discomfort for the patient.
  • Key Optical Requirements: An effective medical light must meet several stringent criteria:
    • High Intensity: To illuminate deep cavities and reveal fine detail.
    • Accurate Color Rendering: To allow true differentiation of tissue colors, critical for diagnosing conditions like infections, bruising, or vascular health.
    • Minimal Shadowing: To prevent obstructions (like the clinician’s head or hands) from casting deep, obscuring shadows on the area of interest.
    • Operación de Luz Fría: To prevent heat buildup that could dry tissues, cause patient discomfort, or compromise sterility during long procedures.
  • Impact on Diagnostic Accuracy: The right light directly translates to clinical precision. It is essential for identifying dermatological conditions, assessing wound bed viability, performing otoscopic and oral exams, and detecting the visual cues of countless systemic illnesses.

1.2. Core Standards and Safety Regulations

Medical exam lights are not ordinary appliances; they are regulated medical devices. Compliance ensures patient and staff safety.

  • Overview of Relevant Standards: The international benchmark is la IEC 60601-1, which governs the safety of medical electrical equipment. Specific clauses address light intensity, temperature limits, and electrical isolation to protect against micro-shock hazards.
  • Infection Control & Cleanability: In an era of heightened infection awareness, the light’s design is paramount. Seamless housings, non-porous materials (like medical-grade polymers or stainless steel), and coatings that withstand harsh disinfectants are mandatory to prevent the light itself from becoming a vector for pathogens.
  • Electrical and Thermal Safety: Beyond shock prevention, standards limit the surface temperature of light heads to prevent accidental burns, a crucial consideration during lengthy examinations or with anesthetized patients.

2. Types of Medical Exam Lights: A Detailed Breakdown

Understanding the categories of lights is the first step in matching the tool to the task.

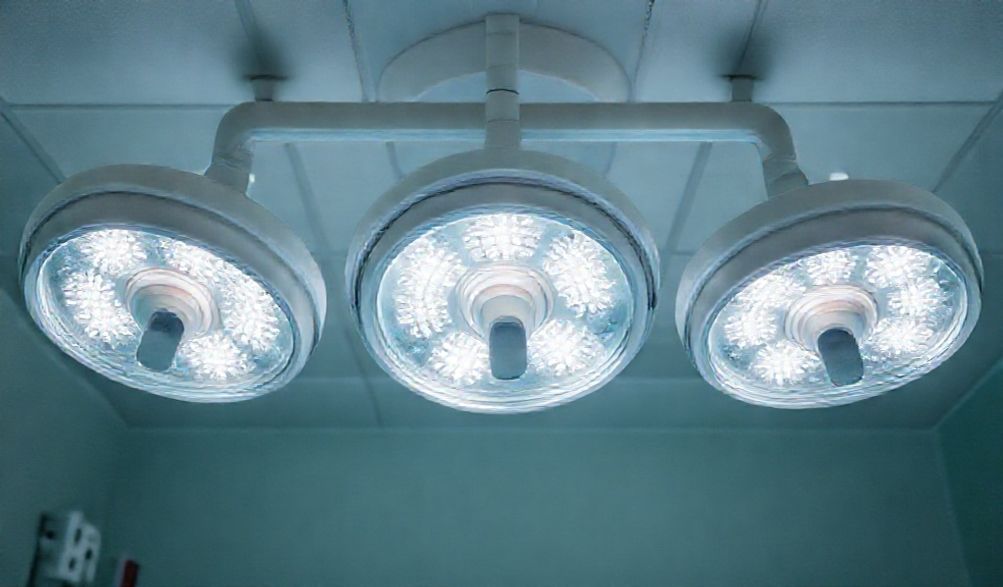

2.1. Overhead Examination Lights (Ceiling-Mounted)

These are the workhorses of procedure rooms and emergency departments.

  • Primary Use Cases: Ideal for minor surgical procedures, laceration repairs, wound debridement, and emergency trauma care where hands-free, broad-area illumination is needed.
  • Características Clave: They feature large-diameter reflectors with multi-LED arrays to produce a wide, deep field of bright, even light. Many offer manual or touch-free positioning.
  • Advantages & Limitations: They provide superior, unobstructed illumination but require permanent ceiling installation and represent a higher initial investment.

2.2. Procedural & Surgical Lights

The pinnacle of medical lighting technology, designed for the most demanding environments.

  • Defining Characteristics: These lights deliver extreme intensity (often 40,000 to 160,000 lux) with sophisticated shadow reduction technology. This is achieved via multiple light sources arranged in a ring or matrix; if one source is blocked, the others compensate. They feature sterile handles for intraoperative adjustment and often allow tuning of color temperature.
  • Specialized Variants: This category includes laparoscopic light cables for internal illumination and high-precision headlights worn by neurosurgeons, dentists, and ENT specialists.

2.3. Diagnostic Wall-Mounted & Portable Lights

The most common type found in general examination rooms across all specialties.

  • Common Applications: Routine physical exams, dermatology evaluations, ENT checks, and dental consultations.
  • Flexibility Features: Their hallmark is adaptability. They are typically mounted on a wall or cabinet and feature multi-jointed, articulating arms or flexible goosenecks. This allows the clinician to precisely position the light beam from any angle. Some are battery-powered for ultimate portability at the bedside.
  • Example: The classic “swing-arm” light is a quintessential example, offering a perfect balance of power and positioning flexibility.

2.4. LED vs. Halogen: The Technology Shift

The medical lighting world has undergone a revolution, moving decisively from halogen to LED.

  • LED Technology Dominance:
    • Beneficios: LEDs are now the undisputed standard. They run cool, generate very little heat, and are exceptionally energy-efficient. Their lifespan is remarkable—often exceeding 50,000 hours—virtually eliminating bulb replacements. Most importantly, high-quality LEDs provide consistent color temperature and superior El Índice de Reproducción Cromática (IRC).
    • Índice de Reproducción Cromática (IRC): Measured from 0-100, CRI indicates how accurately a light source reveals the true colors of an object. For medical use, a CRI >90 is essential. A light with a CRI of 95+ renders tissue tones, blood oxygenation colors, and rash hues with near-perfect fidelity.
  • The Decline of Halogen:
    • Desventajas: Halogen lights are largely obsolete. They are inefficient, converting most energy into heat, which can be dangerous and uncomfortable. Their bulbs have short lifespans (1,000-2,000 hours), and their color temperature yellows and dims over time, degrading diagnostic reliability.

3. How to Choose the Right Medical Exam Light: An Expert Buying Guide

Selecting a light requires a strategic assessment of clinical needs against technical specifications.

3.1. Assessing Your Clinical Requirements

Start by defining the primary use case.

  • Specialty-Specific Needs:
    • Primary Care/General Practice: Prioritize versatile, maneuverable wall lights with excellent CRI for full-body exams.
    • Dermatología: Require lights with exceptional color accuracy (CRI >95) and even, shadow-free illumination for assessing skin lesions.
    • Surgery/Procedure Rooms: Need high-intensity overhead or surgical lights with deep cavity illumination and shadow reduction.
    • Cuidado de Heridas: Benefit from lights that enhance contrast to differentiate between granulation, slough, and necrotic tissue.
  • Procedure Type: Consider the duration, sterility requirements, and level of precision. A 30-minute biopsy has different needs than a 5-hour orthopedic surgery.

3.2. Technical Specifications Decoded

Speak the language of light to make an informed choice.

  • Lux/Lumen Output: Lux measures illuminance (brightness on a surface). General exams may require 15,000-25,000 lux, while major surgery demands 40,000-100,000+ lux.
  • Field Diameter & Depth: A light should provide a wide, even field (e.g., 15-25cm diameter) at a typical working distance (e.g., 75-100cm), with sufficient depth to keep the area in focus even as tools move in and out.
  • Temperatura de Color (Kelvin): This describes the “warmth” or “coolness” of light.
    • ~3500K (Warm White): Softer, may be used for ambient lighting.
    • 4500K-5500K (Cool Daylight): The clinical standard. It reduces eye strain for the provider and provides a neutral, alert environment that best matches natural daylight for accurate color assessment.
  • Gestión de Sombras: Evaluate the light head design. A single LED/reflector will cast a hard shadow. Look for multi-source designs (e.g., ring LEDs or multiple reflectors) that inherently minimize shadows.

3.3. Ergonomics, Usability, and Workflow Integration

A light that is difficult to use will be underutilized.

  • Mobility and Positioning: Test the movement. Arms should glide smoothly into position and lock securely without drift. The reach should cover the entire exam area without obstruction.
  • Sterilization and Maintenance: Confirm which disinfectants are safe for the housing. The design should have no crevices where contaminants can lodge.
  • Durability and Warranty: Medical equipment faces daily use. Look for robust construction, quality bearings in the arms, and a comprehensive warranty from a reputable manufacturer.

4. Installation, Maintenance, and Best Practices

4.1. Professional Installation Considerations

  • Ceiling-Mounted Systems: Installation is not a DIY project. It requires evaluating ceiling structural support, running dedicated electrical lines, and ensuring the light is perfectly centered over the procedure table or exam zone.
  • Ensuring Stability and Safety: All mounting must be checked to prevent any risk of the light drifting down or falling, which is both a safety hazard and a disruption to sterile fields.

4.2. Routine Maintenance Protocol

  • Daily/Pre-Use Check: Quickly inspect for flickering, dimming, or any erratic movement in the arms.
  • Cleaning Guidelines: Follow the manufacturer’s instructions precisely. Typically, a damp cloth with a mild detergent or specified hospital-grade disinfectant is used. Avoid abrasive cleaners or solvents that can damage surfaces.
  • Bulb/LED Module Replacement: With LEDs, replacement is rare. If a module fails, it’s usually a simple swap-out procedure per the manufacturer’s guide.

4.3. Optimizing Light Use for Patient Comfort

  • Avoiding Glare: Always position the light beam onto the area of interest from an angle, never shining it directly into the patient’s eyes. Some lights have built-in glare control rings.
  • Pre-Warming the Field: For procedures using metal specula or instruments, briefly turn on the light over the field before the patient is in position. This takes the “chill” off the equipment, improving the patient experience.

Preguntas Frecuentes (FAQ)

P1: ¿Cuál es la característica más importante a buscar en una lámpara general para sala de reconocimiento?
R: For a general exam room, prioritize a combination of alto Índice de Reproducción Cromática (IRC >90) y la una excelente maniobrabilidad. Accurate color is vital for diagnosis, and an articulating arm that easily positions the light exactly where needed is crucial for efficient workflows.

Q2: Are LED medical lights really worth the higher upfront cost?
R: Absolutely. While the initial investment is higher, LED lights offer significant long-term savings through drastically lower energy consumption y la elimination of frequent bulb replacements. Their cool operation enhances patient comfort and safety, and the consistent light quality improves diagnostic confidence. The total cost of ownership is typically lower.

P3: ¿Con qué frecuencia necesitan calibrarse o recibir mantenimiento las lámparas de examen médico?
R: Las lámparas LED modernas requieren una calibración mínima. Sin embargo, se recomienda una revisión profesional anual para garantizar que todos los brazos mecánicos se muevan con suavidad y seguridad, que las conexiones eléctricas estén en buen estado y que la salida de luz cumpla con las especificaciones originales. Siempre siga el programa de mantenimiento específico del fabricante.

P4: ¿Puedo utilizar una lámpara LED de fotografía de alta calidad para procedimientos médicos menores?
R: No es recomendable.. Las lámparas de examen médico están construidas según estándares de seguridad específicos (IEC 60601-1), con diseños que priorizan la limpieza, el control de infecciones y el aislamiento eléctrico del paciente. Las lámparas de grado de consumo carecen de estas certificaciones críticas de seguridad e higiene.

P5: ¿Qué significa “reducción de sombras” en las lámparas quirúrgicas?
R: La tecnología de reducción de sombras utiliza múltiples fuentes de luz desde ángulos ligeramente diferentes dentro de un solo cabezal. Cuando la mano o el instrumento de un cirujano bloquea una fuente de luz, las otras rellenan la sombra, manteniendo un campo de visión constante, brillante y uniforme en cavidades profundas.

Conclusión

Elegir la lámpara de examen médico adecuada es una decisión que repercute en cada interacción con el paciente. Es una inversión en claridad diagnóstica, eficiencia de los procedimientos y, en última instancia, en la calidad de la atención. Al dejar de verla como una simple utilidad y reconocerla como una herramienta clínica vital, puede seleccionar una solución que empodere a su equipo médico. Equilibre las especificaciones técnicas no negociables—alto IRC, lux apropiado y temperatura de luz diurna fría—con las realidades prácticas de la ergonomía, la durabilidad y el diseño seguro frente a infecciones. Al hacerlo, obtendrá más que un equipo; obtendrá un socio confiable para brindar una atención al paciente precisa, segura y excepcional en los años venideros.
