Surgery Lamp

/ Surgical Light / By

Surgery Lamps: A Comprehensive Guide to Types, Features, and Selection for Optimal Surgical Outcomes

Introduction

Imagine a master watchmaker attempting to repair a delicate, intricate mechanism while working in dim, flickering light. The risk of error would be immense. Now, translate that scenario to an operating room, where a surgeon’s task involves navigating the complex landscape of the human body. Here, lighting is not a mere utility; it is a fundamental instrument of care. While the scalpel, sutures, and imaging technology often take center stage, the surgery lamp is the silent, indispensable partner that makes every precise cut and careful dissection possible. In fact, studies consistently underscore that optimal visualization is directly linked to surgical precision, reduced operative time, and enhanced patient safety.

The challenges of inadequate surgical lighting are significant. They range from immediate physical strain—causing surgeon eye fatigue and headaches—to direct clinical risks like obscured anatomy, harsh shadows that hide critical structures, and heat generation that can desiccate exposed tissue. Furthermore, poor color rendering can distort the appearance of tissues, making it difficult to differentiate between, say, a nerve and a tendon, or to accurately assess tissue perfusion and health.

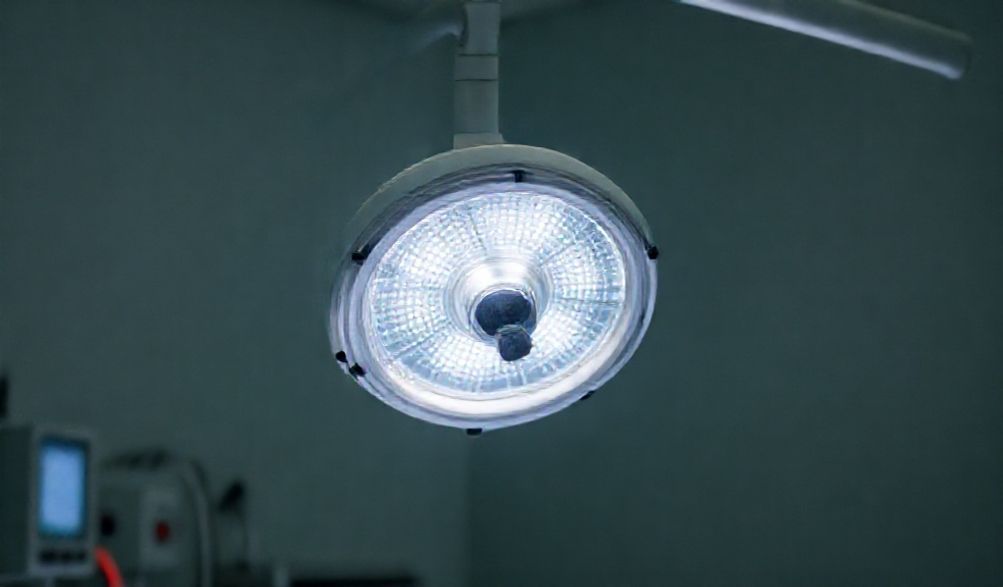

Enter the modern surgery lamp, or operating light. Far from a simple bulb on a stand, it is a highly engineered system designed to overcome these very challenges. This guide synthesizes information from medical device standards, clinical ergonomic studies, and leading manufacturer specifications to provide a clear, authoritative roadmap. Our goal is to empower hospital administrators, clinical engineers, and surgical teams with the knowledge needed to make informed decisions. We will delve into the technology behind these vital tools, break down the key features that matter most, and provide a structured approach to selecting the right system for your specific surgical environment.

The Critical Role of Surgical Lighting in Modern Medicine

Beyond Illumination: How Lighting Impacts Surgical Precision and Safety

A superior surgery lamp does much more than just brighten a room. It creates a controlled visual environment that enhances the surgeon’s natural abilities. Key aspects include:

  • Depth of Illumination: This refers to the lamp’s ability to provide consistent, high-quality light deep into a body cavity, such as during abdominal or pelvic surgery. A good lamp illuminates the base of a deep wound as clearly as the surface, eliminating the need for constant refocusing and manual retraction just to see.
  • Shadow Reduction and Dilution: A single point of light creates harsh, obstructive shadows. Modern systems use multiple light sources (often within a single lamp head) or multiple lamp heads to “fill in” shadows created by the surgeon’s head, hands, and instruments. This is known as shadow dilution, ensuring the surgical site remains uniformly lit from multiple angles.
  • True Tissue Color Rendition: Accurate color perception is non-negotiable. Differentiating between arterial blood (bright red) and venous blood (darker red), identifying bile, or assessing the viability of tissue (pink vs. pale vs. cyanotic) relies on a light source that reproduces the full color spectrum faithfully.

The impact on outcomes is tangible. Reduced visual strain leads to less surgeon fatigue, potentially lowering error rates. Clear visualization can shorten procedure times. Most importantly, it contributes directly to patient safety by ensuring the surgical team can see exactly what they are doing at all times.

A Brief Evolution: From Shadow-Casting Bulbs to LED Systems

The journey of surgical lighting mirrors the broader arc of medical technology—a relentless pursuit of greater control, safety, and efficiency. Early operating rooms relied on simple incandescent bulbs or natural light, plagued by heat and shadows. The introduction of halogen lamps in the mid-20th century was a leap forward, offering brighter, whiter light. However, they generated intense radiant heat, required frequent and costly bulb replacements, and were energy-inefficient.

The current revolution is led by Light Emitting Diode (LED) technology. LEDs represent a paradigm shift, offering cool, stable, and highly efficient illumination. This evolution from a simple “light” to an intelligent “visualization system” underscores its foundational role in modern surgery.

Core Components and Technology of a Surgery Lamp

Understanding the core components demystifies the specifications and helps in evaluating different models.

Light Source Breakdown: LED vs. Halogen (A Legacy Comparison)

Today, LED is the unequivocal standard for new purchases. However, understanding the comparison highlights why.

  • LED Technology:

    • Advantages: The primary benefit is cool light; LEDs emit minimal infrared radiation, drastically reducing the risk of tissue drying and thermal injury. They boast an exceptionally long lifespan (typically 50,000+ hours), virtually eliminating the cost and downtime of bulb replacements. They are highly energy-efficient, cutting operational costs. LED light output and color temperature remain stable over their entire lifespan, unlike halogens which dim and yellow over time.
    • Considerations: The initial purchase price can be higher, though Total Cost of Ownership (TCO) is almost always lower.

  • Halogen Technology (Legacy):

    • Context: Once the standard, halogen systems are now considered legacy technology. Their decline is due to significant drawbacks: intense heat output, frequent bulb replacement (every 1,000-2,000 hours), higher energy consumption, and gradual degradation of light quality.

The Optical System: Lenses, Reflectors, and Light Field Design

The light source is just the beginning. The optical system—comprising specially designed lenses and reflectors—shapes the raw light into a usable surgical tool. This system is engineered to produce a homogeneous (evenly distributed) light field with a high depth of illumination.

Key terms to know:
* Light Field Diameter: The size of the illuminated area at a typical working distance (e.g., 1 meter). It must be large enough to cover the surgical site.
* Depth of Illumination: A measure of how far into a cavity the light maintains its specified intensity and homogeneity. This is a critical metric for deep-cavity surgeries.

Mechanical Structure: Arms, Mounts, and Maneuverability

The best light is useless if it can’t be positioned precisely and held steadily. The mechanical system is crucial for ergonomics.
* Mounts: Ceiling-mounted systems are most common in dedicated ORs, freeing up floor space. Wall mounts or mobile floor stands offer flexibility for minor procedure rooms, outpatient suites, or multi-purpose rooms.
* Articulation: Surgical light arms use a series of balanced joints (often with gas springs) to allow smooth, effortless positioning. They must move easily into place and then stay exactly where they are put, without drift.
* Sterile Handling: Lamp heads feature handles that can be easily draped with sterile sleeves or are designed with smooth, cleanable surfaces, allowing the surgeon or assistant to reposition the light during a procedure without breaking sterility.

Key Features to Evaluate When Choosing a Surgery Lamp

When comparing models, focus on these performance and practical categories.

Illumination Performance Metrics

  1. Intensity (Lux/Lumens): Measured in lux (illuminance at the surface). General surgery typically requires 40,000 to 160,000 lux. Deep-cavity or microsurgery demands the higher end of this range or more.
  2. Color Rendering Index (CRI): This is a scale (0-100) that measures a light’s ability to reveal the true colors of objects compared to natural light. For surgery, a CRI >90 is essential, with >95 being ideal for specialties like plastic surgery or oncology where subtle color differences are critical.
  3. Homogeneity: The light field should be uniform, without hot spots (glaring bright centers) or dark edges. Good homogeneity reduces the need for constant lamp adjustment during surgery.

Safety and Ergonomics

  1. Heat Management: As noted, LED’s cool-light advantage directly enhances patient safety by minimizing tissue desiccation and improving surgeon comfort.
  2. Shadow Dilution: Evaluate how the lamp design mitigates shadows. This can be through a multi-lens system within a single head or via a configuration of multiple independent lamp heads.
  3. Surgeon Comfort: Look for intuitive controls (often on a sterile handle), anti-glare designs, and smooth, responsive maneuverability that doesn’t require excessive force.

Durability and Operational Practicalities

  1. Sterilization Compatibility: All surfaces, especially handles, must withstand repeated cleaning with hospital-grade disinfectants without degrading.
  2. Lifespan and Maintenance: Factor in the long-term TCO. An LED system’s higher upfront cost is offset by negligible bulb costs and lower energy bills for over a decade.
  3. Fail-Safe Features: A battery backup system is critical. In a power outage, the light should maintain illumination (often at a reduced level) long enough to safely conclude the procedure or activate emergency protocols.

Types of Surgery Lamps and Their Applications

Surgery lamps are not one-size-fits-all. The right type depends on the procedural needs.

Major Procedure Lamps

  • For: General surgery, orthopedic, cardiothoracic, neurosurgery, and other major open procedures.
  • Characteristics: Large light field diameter (often 25-35 cm), very high intensity, and typically feature multiple lamp heads (2-4) on a single ceiling mount for superior shadow dilution and coverage of large surgical fields.

Minor Procedure/Specialty Lamps

  • For: Examination rooms, dental suites, outpatient surgery centers, endoscopy, and minor wound care.
  • Characteristics: Smaller, simpler, and often more mobile. They may be single-headed on a floor stand or a small wall mount. Intensity and field size are sufficient for localized procedures.

Hybrid and Integrated Systems

This is a growing trend. Modern lamps can be integrated with 4K or high-definition cameras, allowing for live streaming of the surgical field for education, telemedicine consultation, or documentation. Some systems integrate with operating room integration networks, allowing control from a central touchscreen.

A Step-by-Step Guide to Selecting the Right Surgery Lamp

Follow this structured approach to navigate the selection process.

Step 1: Assess Your Primary Surgical Specialties and Needs

Start with clinical requirements. Ask:
* What are the most common procedures performed?
* How critical is deep-cavity illumination (e.g., pelvic surgery vs. superficial dermatology)?
* Is exceptional color fidelity (CRI >95) a priority?
* Will the light be used for teaching or require integrated recording?

Step 2: Evaluate Your Physical Operating Room Environment

The physical space dictates constraints and opportunities.
* Measure ceiling height and strength.
* Map out the room size and OR table placement.
* Determine if you need a single light for one table or a system that can service multiple tables.
* Assess existing infrastructure (electrical, data for integrated systems).

Step 3: Compare Brands and Models Against Your Key Criteria

Create a simple comparison matrix. List your top models as columns and your key features (from Section H2) as rows. Fill in the specifications. This visual tool makes trade-offs and value propositions clear.

Step 4: Plan for Installation, Training, and Long-Term Support

The purchase is just the beginning. Choose a vendor with a strong reputation for:
* Professional Installation: Ensuring the system is perfectly balanced and calibrated.
* Comprehensive Clinical Training: Ensuring surgeons and staff know how to use all features effectively and ergonomically.
* Reliable Service & Warranty: A robust service agreement and a strong warranty are indicators of the manufacturer’s confidence and are critical for minimizing downtime.

FAQ Section

Q1: What is the typical lifespan of an LED surgery lamp?
A: High-quality LED surgery lamps have an average lifespan of 50,000 to 60,000 hours. In a busy operating room used 10 hours a day, this translates to over 15 years of service, with no bulb replacements. This contrasts sharply with halogen systems, which required bulb changes every few months.

Q2: How much does a quality surgical light system cost?
A: It’s impossible to give a single figure, as costs vary widely. A single minor procedure light on a stand may start in the thousands of dollars, while a top-tier, multi-headed, ceiling-mounted major procedure system with camera integration can reach into the tens of thousands. The key is to evaluate it as a long-term capital investment, where the total cost of ownership (including energy use, maintenance, and bulb replacement) is more important than the initial sticker price.

Q3: Can surgery lamps be customized for specific procedures?
A: Yes, many systems offer customization. Common options include different color temperature filters (e.g., a warmer light for some plastic surgery applications), focused “spot” light modes for microsurgery, and of course, the integration of cameras and streaming modules mentioned earlier.

Q4: What are the most important certifications to look for?
A: Always verify these critical certifications:
* Regulatory Market Clearance: FDA 510(k) clearance in the U.S., CE Marking in Europe.
* Safety Standard: IEC 60601-1 (the international standard for the safety of medical electrical equipment).
* Quality Management: ISO 13485 certification, which specifies requirements for a quality management system in the design and manufacture of medical devices.

Q5: How often does a surgical light need preventive maintenance?
A: While LED sources require almost no maintenance, the mechanical and electrical systems do. Manufacturers typically recommend an annual professional preventive maintenance check. This ensures the arms move smoothly and safely, all electrical connections are secure, the backup battery is functional, and the light output is still within specified calibration. Always follow the manufacturer’s schedule and your hospital’s clinical engineering protocols.

Conclusion

Selecting a surgery lamp is a strategic decision that reverberates through the operating room, impacting clinical outcomes, team ergonomics, and facility efficiency for over a decade. It is not merely a purchase of brightness, but an investment in a sophisticated tool that delivers controlled, cool, and homogeneous light—transforming illumination into a reliable extension of the surgeon’s vision.

This decision carries significant weight for patient safety and surgical excellence. Therefore, investing time to understand the specifications, prioritizing features that match your clinical needs, and partnering with reputable, certified manufacturers and vendors is paramount. Use this guide as your foundational checklist. Your most valuable next step is to bring together your clinical engineering staff and surgical leads, review your specific OR case logs and challenges, and, crucially, request live demonstrations or trial installations from potential suppliers. Seeing and maneuvering the lights in a realistic setting is the best way to experience the differences that specifications sheets can only describe.
